Remote resivoir

[-sparky-]

Another option for our vans. This remote master resivoir is available from Scotts hotrods and eliminated the need for a floor plug

[Brain-O]

is it connected to the original m/c? or does it need a custom m/c as well

[-sparky-]

is it connected to the original m/c? or does it need a custom m/c as well

Mine is plumbed to a wilwood master but I've seen pics of original master lids drilled and sealed tightly

[65Mark]

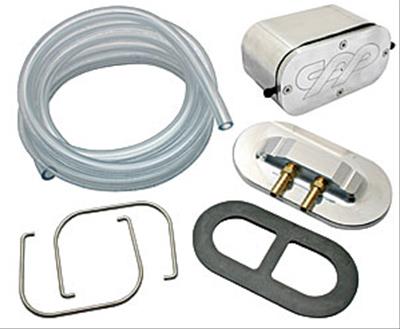

From Summit Racing - $129 for plastic reservoir and $279 for billet

https://www.summitracing.com/parts/clp-rrck

https://www.summitracing.com/parts/clp-brck

Summit's description says it will fit most OEM GM masters. Might be worth contacting Summit or CPP to verify.

[-sparky-]

Heater bypass showed up. Grummen part. Install this weekend

[-sparky-]

Update. Heater valve installed. Used a 2nd gen cable to under dash area for controll

[-sparky-]

[AzDon]

The Master cylinder "hat" in that kit is set up to work with dual hold-down hoops across the opening and our masters have a single lengthwise hoop.......I made my own hat assembly for permanent installation that holds pressure so it can also be used for power bleeding.....
I didn't think a separate reservoir was necessary because the master holds plenty of fluid
My setup fills from the power bleeder through the clear plastic lines which I use as sight glasses....

https://vintage-vans.forumotion.com/t62393-master-cylinder-bleeder-and-fill-lid
